Piston rod cylinders

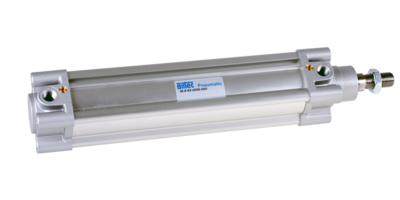

Series SLX

ISO 15552, Ø 32 mm to Ø 125 mm

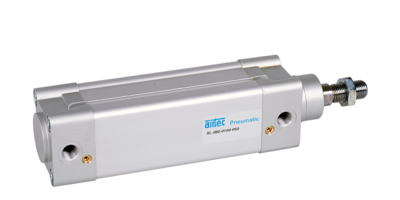

Series XL

ISO 15552, Ø 32 mm to Ø 125 mm

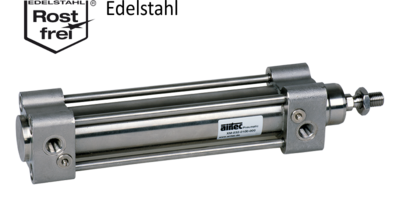

Series XM

ISO 15552, Ø 32 mm to Ø 125 mm

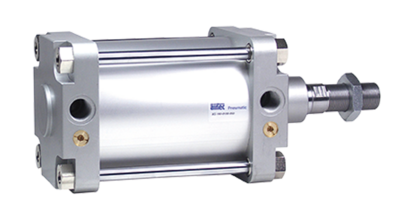

Series XG

ISO 15552, Ø 160 mm to Ø 320 mm

Series HM

ISO 6432, Ø 8 mm to Ø 25 mm

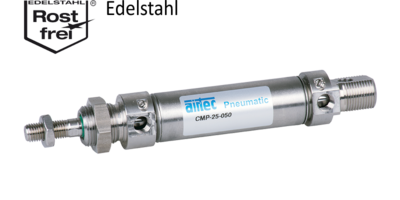

Series CM

ISO 6432, Ø 16 mm to Ø 25 mm

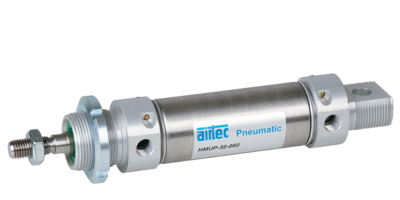

Series HMU

Ø 32 mm to Ø 40 mm

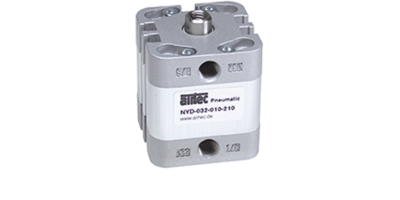

Series NY

ISO 21287, Ø 20 mm to Ø 125 mm

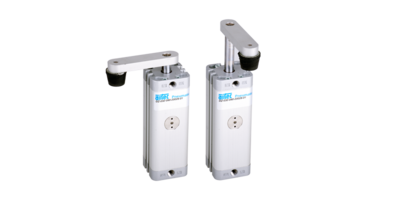

Series DZY

Swivel/clamp cylinder, Ø 20 mm to Ø 63 mm

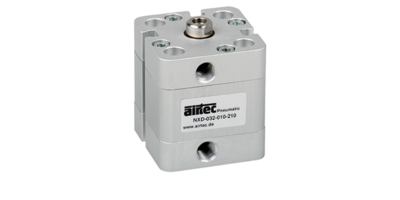

Series NX

Ø 12 mm to Ø 100 mm

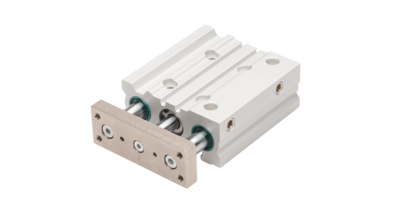

Series LXA

Ø 16 mm to Ø 63 mm

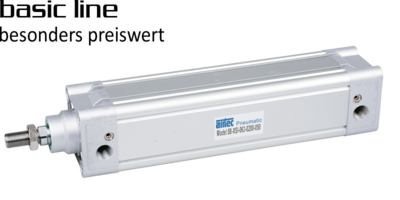

Series 88-XSI

ISO 15552, Ø 32 mm to Ø 125 mm

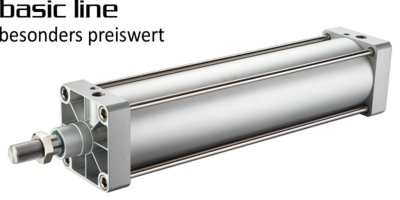

Series 88-XSQ

ISO 15552, Ø 160 mm to Ø 320 mm

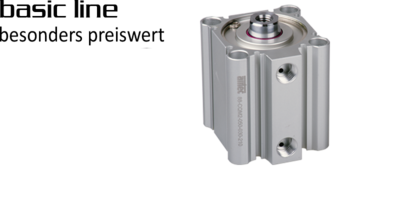

Series 88CQ2

Ø 12 mm to Ø 100 mm

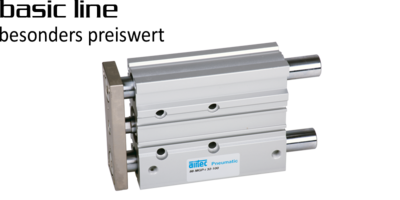

Series 88-MGP

Ø 12 mm to Ø 63 mm

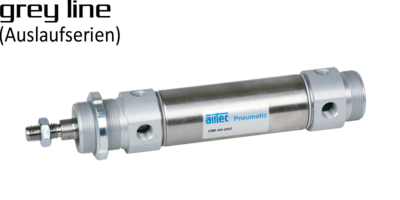

Series HM

Ø 32 mm to Ø 63 mm

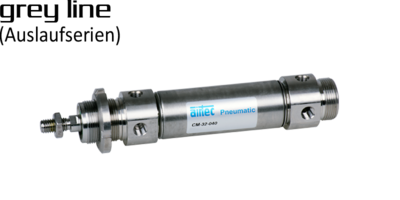

Series CM

Ø 32 mm to Ø 63 mm

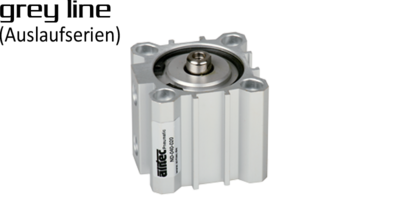

Series ND

Ø 12 mm to Ø 100 mm

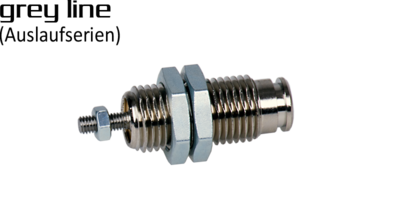

Series HA, HB

Ø 6 mm to Ø 16 mm
